Off-line Upstream Equipment

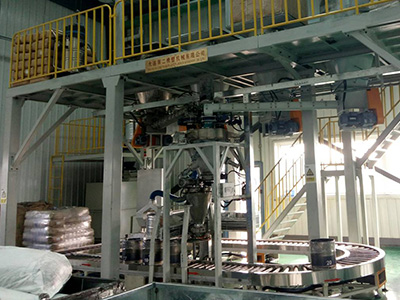

The system is designed and developed for customers with low factory buildings, large variety of powder materials and complex formulas. Using screw feeder automatic feed, weighing moving car, automatic in place, circular conveying.

The system is designed and developed for customers with low factory buildings, large variety of powder materials and complex formulas. Using screw feeder automatic feed, weighing moving car, automatic in place, circular conveying.

2.1 system feature:

1.)Suitable for 110L-35L mixer

2.)Centralized dust collecting compact overall structure, single-storey plant,

3.)High precision of weighing, high degree of automation, saving labor

4.)Ingredient variety, easy to expand


2.2 Main technical parameters

 Item

Parameters

 Mixer volume

35L-90L

Maximum   weighing   of carbon black scale

30kg,60kg,100kg

Maximum   weighing   of oil scale

10kg,30kg,

Maximum   weighing   of rubber   scale

100kg,200kg

Scale   level

III

 Weighing period

180sec/batch
